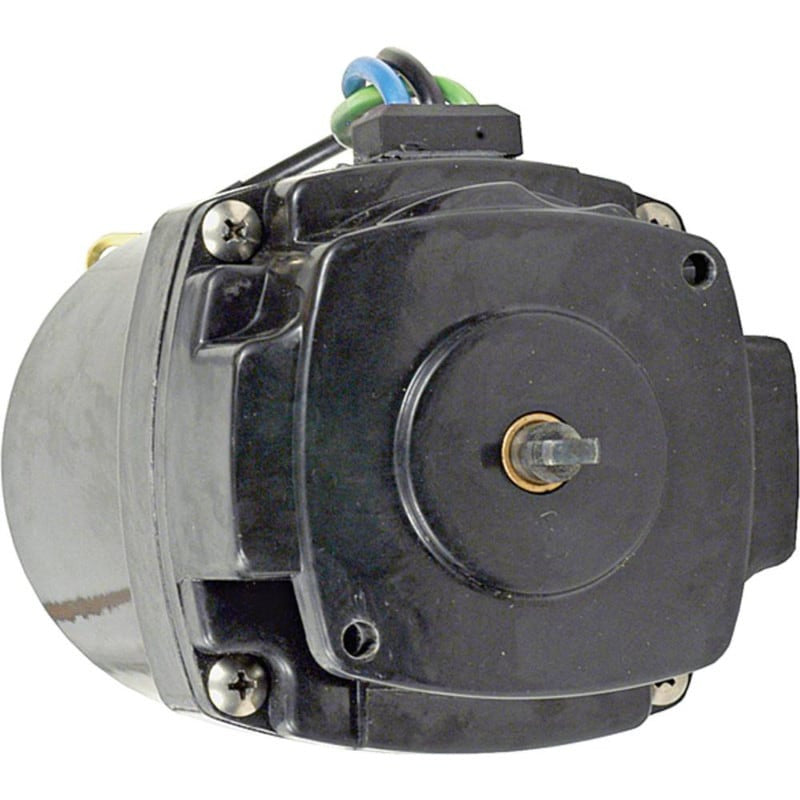

12V Tilt/Trim Motor for Mercury Marine - New, Reversible, 1 Year Warranty

12V Tilt/Trim Motor for Mercury Marine - New, Reversible, 1 Year Warranty

* Made to OEM Specs To Provide A Direct Fitment & Easy Install!
* Manufactured With High Grade Materials By an Industry Leader
* Ships Same Day If Ordered & Paid By 11AM EST

OEM Cross References:
References

* Arrowhead TRM0008
* EMP 4-6722
* J&N Electrical Products 430-22005, 430-22084
* JANNCO 430-22005R
* Lester 10822M
* Mercury Marine 17649, 17649A02, 17649A1, 17649T, 87828, 891736T
* Sierra Marine 18-6722

Fits Models:

Applications

Make
Model
Engine
Year
Notes

* Mercury Marine 175ELPTO 1988
* Mercury Marine 175EXLPTO 1988
* Mercury Marine 200ELPTO 1988
* Mercury Marine 200EXLPTO 1988
* Mercury Marine 250XL 1989
* Mercury Marine 250XXL 1989
* Mercury Marine 275XL 1989
* Mercury Marine 275XXL 1989
* Mercury Marine 3.4 ELPT 1984, 1985, 1986, 1987
* Mercury Marine 3.4 EXLPT 1984, 1985, 1986, 1987
* Mercury Marine 300ELPT 1983
* Mercury Marine 300EXLPT 1983
* Mercury Marine All Models
* Mercury Marine All Models
* Mercury Marine All Models

Specifications:
Lester 10822M
Volt 12
Condition New
Rotation Direction Reversible
OD 3.622"
OD 92 mm
Shaft OD 0.378"
Shaft OD 9.600mm
Length 171 mm
Length 6.732"
Terminal 2 Size Wire
Terminal 3 Size Wire
Terminal 4 Size Wire
Shaft 3.8mm Thick Tang
Current Type DC
Warranty 1 Year
Includes (3) 175mm Long Leads With Ring Terminals @Late Style-Will Replace Early Style
