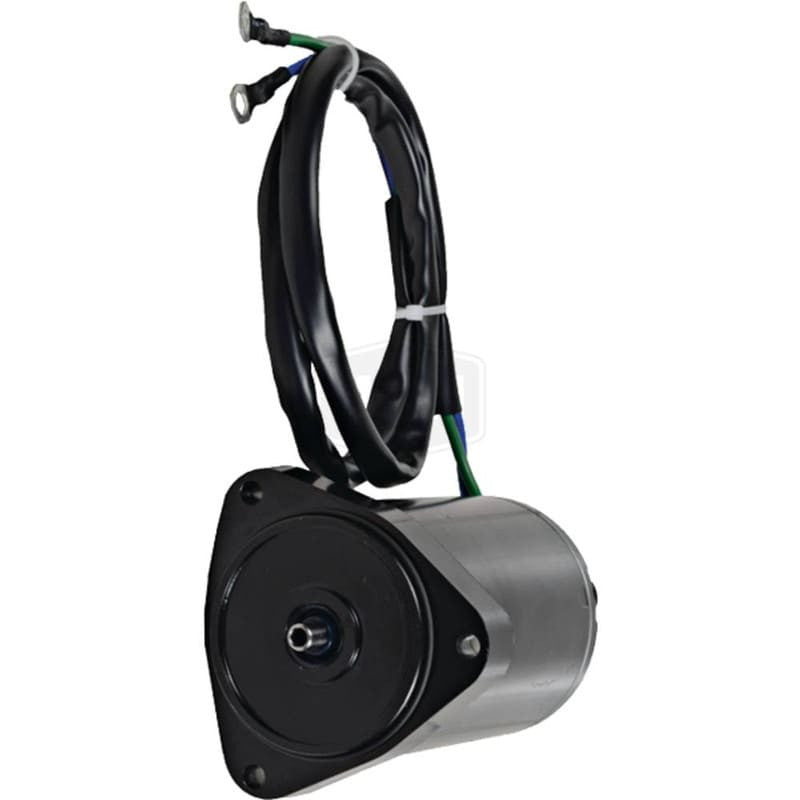

12V Tilt/Trim Motor for Suzuki DT100, DT150, DT200, DT225, New, 1 Year Warranty

12V Tilt/Trim Motor for Suzuki DT100, DT150, DT200, DT225, New, 1 Year Warranty

* Made to OEM Specs To Provide A Direct Fitment & Easy Install!
* Manufactured With High Grade Materials By an Industry Leader
* Ships Same Day If Ordered & Paid By 11AM EST

OEM Cross References:
References

* Arrowhead TRM0054, TRM0063
* Delco RT05037
* EMP 4-6786
* J&N Electrical Products 430-22089
* Lester 10838, 10846
* Mercury Marine 8M6007548
* Sierra Marine 18-6786
* Suzuki 38100-87D10-0ED, 38100-87D10OED, 38100-87E20-0ED, 38100-87E20OED, 38100-92E00-0ED, 38100-92E00OED

Fits Models:

Applications

Make
Model
Engine
Year
Notes

* Suzuki DT100SF 86 cu in 1990
* Suzuki DT100TCL 86 cu in 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000
* Suzuki DT100TCX 86 cu in 1990
* Suzuki DT150SS 164 cu in 1990
* Suzuki DT150SS 164 cu in 1991
* Suzuki DT150SSN Super Six 164 cu in 1992
* Suzuki DT150STCL EFI 164 cu in 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003
* Suzuki DT150TCL 164 cu in 1990
* Suzuki DT150TCL 164 cu in 1991, 1992, 1993, 1994
* Suzuki DT150TCX EFI 164 cu in 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003
* Suzuki DT150TCX 164 cu in 1990
* Suzuki DT150TCX 164 cu in 1991, 1992, 1993, 1994
* Suzuki DT150TCXG EFI 164 cu in 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003
* Suzuki DT150TCXG 164 cu in 1990
* Suzuki DT150TCXG 164 cu in 1991, 1992, 1993, 1994
* Suzuki DT175TCL 164 cu in 1990
* Suzuki DT175TCL 164 cu in 1991, 1992
* Suzuki DT175TCX 164 cu in 1990
* Suzuki DT175TCX 164 cu in 1991, 1992
* Suzuki DT200TCL EFI 164 cu in 1994, 1995, 1996, 1997, 1998, 1999, 2000
* Suzuki DT200TCL 164 cu in 1990
* Suzuki DT200TCL 164 cu in 1991, 1992, 1993
* Suzuki DT200TCX EFI 164 cu in 1994, 1995, 1996, 1997, 1998, 1999, 2000
* Suzuki DT200TCX 164 cu in 1990
* Suzuki DT200TCX 164 cu in 1991, 1992, 1993
* Suzuki DT200TCXG EFI 164 cu in 1994, 1995, 1996, 1997, 1998, 1999, 2000
* Suzuki DT200TCXG 164 cu in 1990
* Suzuki DT200TCXG 164 cu in 1991, 1992, 1993
* Suzuki DT200VL Exante 164 cu in 1990
* Suzuki DT200VL Exante 164 cu in 1991, 1992
* Suzuki DT200VX Exante 164 cu in 1990
* Suzuki DT200VX Exante 164 cu in 1991, 1992
* Suzuki DT200VXG 164 cu in 1990
* Suzuki DT200VXG 164 cu in 1991
* Suzuki DT225TCL EFI 164 cu in 1994, 1995, 1996, 1997, 1998, 1999, 2000
* Suzuki DT225TCL 164 cu in 1990
* Suzuki DT225TCL 164 cu in 1991, 1992, 1993
* Suzuki DT225TCX EFI 164 cu in 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003
* Suzuki DT225TCX 164 cu in 1990
* Suzuki DT225TCX 164 cu in 1991, 1992, 1993
* Suzuki DT225TCXG EFI 164 cu in 1994, 1995, 1996, 1997, 1998, 1999, 2000
* Suzuki DT225TCXG 164 cu in 1993
* Suzuki DT90TCL 86 cu in 1991, 1992, 1993, 1994, 1995, 1996, 1997

Specifications:
Lester 10838, 10846
Volt 12
Condition New
OD 3.583"
OD 91 mm
Shaft OD 0.315"
Shaft OD 8 mm
Length 141.100 mm
Length 5.555"
Terminal 2 Size Wire
Terminal 3 Size Wire
Shaft Hex
Current Type DC
Warranty 1 Year
