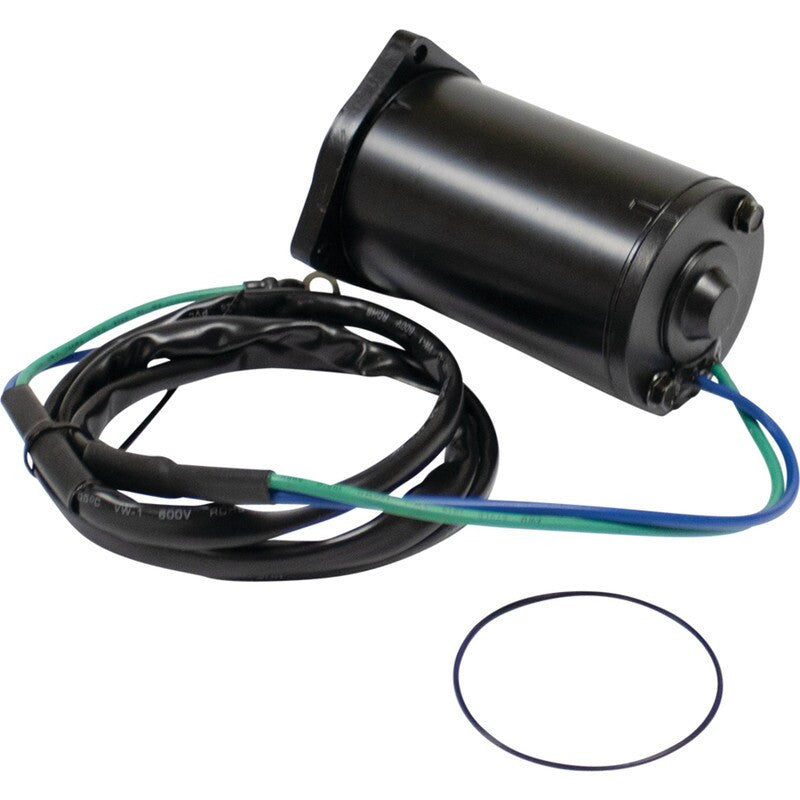

12V Tilt/Trim Motor for Yamaha Outboards, New, Reversible, 1 Year Warranty

12V Tilt/Trim Motor for Yamaha Outboards, New, Reversible, 1 Year Warranty

* Made to OEM Specs To Provide A Direct Fitment & Easy Install!
* Manufactured With High Grade Materials By an Industry Leader
* Ships Same Day If Ordered & Paid By 11AM EST

OEM Cross References:
References

* ArrowheadTRM0060
* EMP4-6789
* J&N Electrical Products430-22048, 430-22090
* Lester10833
* Mercury Marine8M6007573
* Sierra Marine18-6789
* Yamaha62X43880-00, 62X43880-01, 62X43880-09

Fits Models:

Applications

Make
Model
Engine
Year
Notes

* Yamaha 40EJR 1995, 1996, 1997, 1998, 1999
* Yamaha 40ELR 1995, 1996, 1997, 1998
* Yamaha 40ESR 1995, 1996, 1997, 1998, 1999
* Yamaha 40MJH 1995, 1996, 1997, 1998, 1999
* Yamaha 40MJH 2000
* Yamaha 40MJH 2001
* Yamaha 40MLH 1995, 1996, 1997, 1998, 1999
* Yamaha 40MLH 2000
* Yamaha 40MLH 2001
* Yamaha 40MSH 1995, 1996, 1997, 1998, 1999
* Yamaha 40TLH 1996, 1997
* Yamaha 40TLR 1995, 1996, 1997, 1998, 1999
* Yamaha 40TLR 2000
* Yamaha 40TLR 2001, 2002
* Yamaha 40TLR 2003, 2004, 2005, 2006
* Yamaha 50EJR 1995, 1996, 1997, 1998, 1999
* Yamaha 50EJR 2000
* Yamaha 50EJR 2001
* Yamaha 50ELR 1995, 1997, 1998
* Yamaha 50TLH 1995, 1996, 1997
* Yamaha 50TLR 1996, 1997
* Yamaha 50TLR 2001, 2002
* Yamaha 50TLR 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010
* Yamaha C40TLR 1997, 1998, 1999
* Yamaha C40TLR 2000
* Yamaha C40TLR 2001
* Yamaha C40TLR 2001
* Yamaha C40TLR 2002
* Yamaha C40TLR 2003
* Yamaha C50TLR 1998, 1999, 2000
* Yamaha C50TLR 2001
* Yamaha C50TLR 2001
* Yamaha F40TLR 1999
* Yamaha F50TJR 2002, 2003
* Yamaha F50TLH 1996, 1997, 1998
* Yamaha F50TLR 1996, 1997, 1998, 1999
* Yamaha F50TLR 2000
* Yamaha F50TLR 2001, 2002
* Yamaha F50TLR 2003, 2004
* Yamaha F60TJR 2002, 2003, 2004
* Yamaha F60TLR 2002, 2003, 2004
* Yamaha F70LA 2010, 2011
* Yamaha F70LA 2012, 2013, 2014, 2015, 2016
* Yamaha P40TLH 1998
* Yamaha P40TLR 1998
* Yamaha P50TLR 1995, 1996
* Yamaha T50TLR 1996, 1997, 1998
* Yamaha T50TLR 2000
* Yamaha T50TLR 2001, 2002
* Yamaha T50TLR 2003, 2004
* Yamaha T60TLR 2003, 2004

Specifications:
Lester10833
Volt12
ConditionNew
Rotation DirectionReversible
OD2.504"
OD63.600 mm
Shaft OD0.311"
Shaft OD7.900mm
Length120.400 mm
Length4.740"
Terminal 2 SizeWire
Terminal 3 SizeWire
Shaft4mm X 8mm Drive Tang
Current TypeDC
Warranty1 Year
