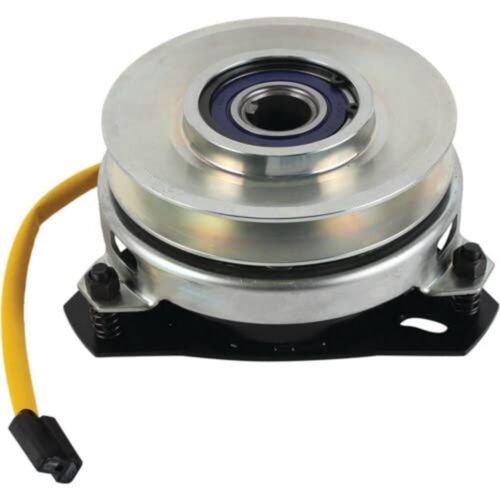

116277, 03450500, 7-9446 PTO Clutch For Ariens, Exmark, Toro, Snapper, Gravely

REPLACES OEM

* Ariens03450500, 050236, 3450500
* Dixie Chopper50300
* Exmark116277
* Gravely03450500, 050236
* Ingersoll RandC48055
* Snapper7079197, 7079446, 7079446YP, 79197, 7-9197, 79446, 7-9446
* Toro116277
* Warner5210-34, 5210-50, 5215-146, 5215-88

FITS MODELS
Ariens934005, 934006, 934007, 934008, 934019 and 934020, HT series; 49065, 50267, 52271, 52628, 52626, 51385, 513386, 52627, 934010, 934011, 934012, 934013, 934014, 934016, 934017, 934018 and 934022, GEM series
Gravely934005, 934006, 934007, 934008, 934019 and 934020, HT series; 49065, 50267, 52271, 52628, 52626, 51385, 513386, 52627, 934010, 934011, 934012, 934013, 934014, 934016, 934017, 934018 and 934022, GEM series
SnapperZTR series 0-5
Toro612-Z, Serial No. 1000001-1999999, 616-Z and 620-Z, Serial No. 1000001-5999999, 616-Z, Serial No. 3900001-4999999, and Z118, Serial No. 79000001-79999999
SPECS
Cool Coil Technology
Does not fit all applications - Verify part number by referring to model specifications
For mower side wiring harness purchase XMC1003
High performance bearings with high temperture grease
Replaceable Pulley Bearing
Stainless steel rivets and bands
Super Smooth "Xtreme Precision" Machined Pulley
To prevent premature clutch failure, follow the instruction sheet included with the clutch
Belt Width1/2" or 5/8"
ID1"
IncludesClutch side integrated, water tight and impact resistant wire harness
Pulley Diameter5 5/16"
Rotation DirectionClockwise

* 1 Year Manufacturer's Warranty
