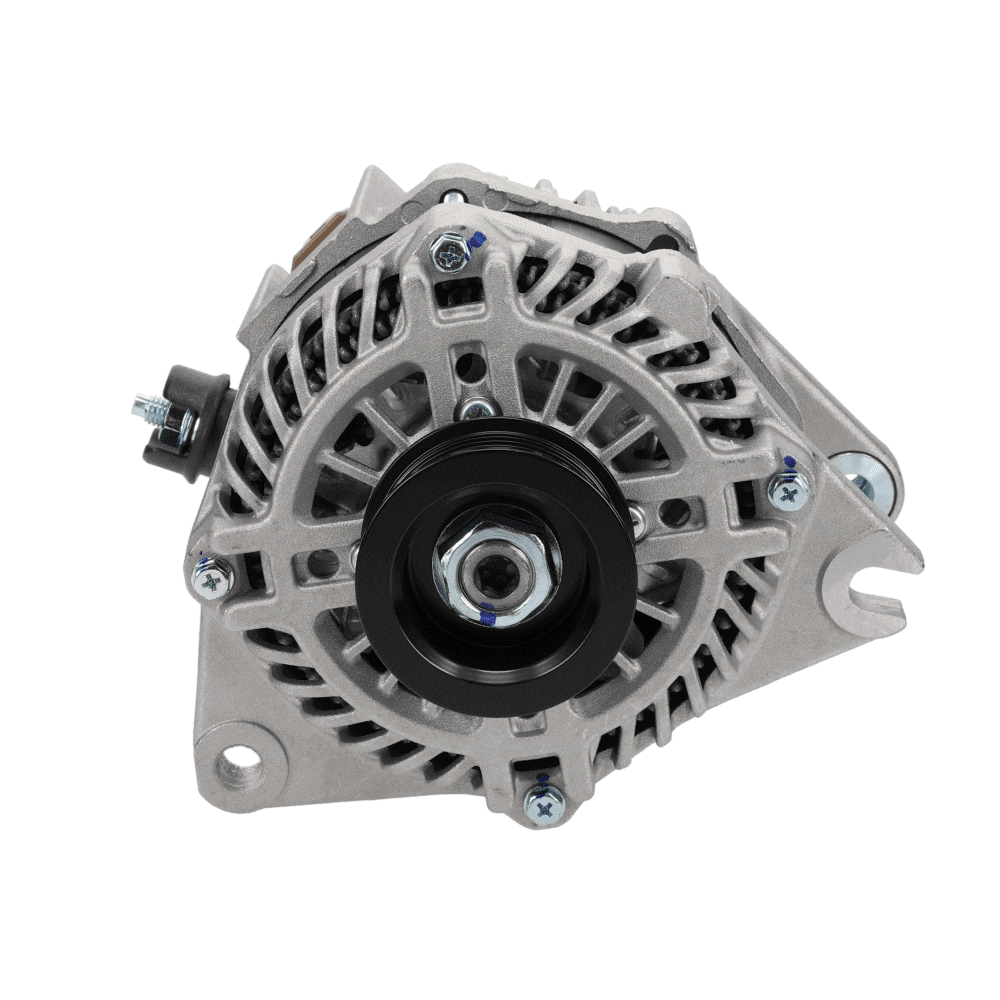

12V 150A Alternator for Ford Transit Van 2015-2019, Remanufactured

12V 150A Alternator for Ford Transit Van 2015-2019, Remanufactured

* Made to OEM Specs To Provide A Direct Fitment & Easy Install!
* Manufactured With High Grade Materials By an Industry Leader
* Ships Same Day If Ordered & Paid By 11AM EST

OEM Cross References:
References

* Ford CK4T-10300-AB, CK4Z-10300-AB, CK4Z-10346-A, CX4T-10300-AB, GL8699
* Lester 20384
* Mitsubishi A002TX2991, A002TX2991ZC, A2TX2991, A2TX2991ZC

Fits Models:

Applications

Make
Model
Engine
Year
Notes

* Ford TRANSIT VAN 150 213cu in, 3.5L V6 2015, 2016, 2017, 2018, 2019
* Ford TRANSIT VAN 150 227cu in, 3.7L V6 2015, 2016, 2017, 2018, 2019
* Ford TRANSIT VAN 250 213cu in, 3.5L V6 2015, 2016, 2017, 2018, 2019
* Ford TRANSIT VAN 250 227cu in, 3.7L V6 2015, 2016, 2017, 2018, 2019
* Ford TRANSIT VAN 350 HD 213cu in, 3.5L V6 2015, 2016, 2017, 2018, 2019
* Ford TRANSIT VAN 350 HD 227cu in, 3.7L V6 2015, 2016, 2017, 2018, 2019
* Ford TRANSIT VAN 350 213cu in, 3.5L V6 2015, 2016, 2017, 2018, 2019
* Ford TRANSIT VAN 350 227cu in, 3.7L V6 2015, 2016, 2017, 2018, 2019
* Ford Transit-150 3496cc, 3.5L V6 2015, 2016
* Ford Transit-150 3726cc, 3.7L V6 2015, 2016
* Ford Transit-250 3496cc, 3.5L V6 2015, 2016
* Ford Transit-250 3726cc, 3.7L V6 2015, 2016
* Ford Transit-350 HD 3496cc, 3.5L V6 2015
* Ford Transit-350 HD 3726cc, 3.7L V6 2015
* Ford Transit-350 3496cc, 3.5L V6 2015, 2016
* Ford Transit-350 3726cc, 3.7L V6 2015, 2016

Specifications:
Lester 20384
Volt 12
Amps 150
Condition Remanufactured
Regulator Clock 11:00
Rotation Direction Clockwise
Mount Hole 1 Type Slotted
Mount Hole ID 2 M10-1.5
Mount Hole 2 Type Threaded
Mount Hole ID 3 10.500mm
Mount Hole 3 Type Unthreaded
Alt Mounting Foot ID 11mm
Mounting Ear 2 Thickness 26mm
Mounting Ear 3 Thickness 15.800mm
Alt Mounting Foot Thickness 15.700mm
Fan Location Internal
Regulator Location Internal
Terminal ID B+
Terminal Size M8-1.25
Terminal ID 2 AS
Terminal 2 Size Spade
Terminal ID 3 RC
Terminal 3 Size Spade
Terminal ID 4 LI
Terminal 4 Size Spade
Polarity Negative
Number of Grooves 6
Groove OD 57mm
Pulley Type Serpentine
