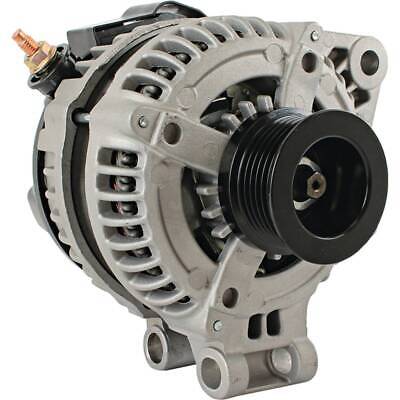

12V 150A Alternator for Land Rover LR3 Range Rover Sport 2005-2009

12V 150A Alternator for Land Rover LR3 Range Rover Sport 2005-2009

* Made to OEM Specs To Provide A Direct Fitment & Easy Install!
* Manufactured With High Grade Materials By an Industry Leader
* Ships Same Day If Ordered & Paid By 11AM EST

OEM Cross References:

* Arrowhead AND0327, VND0327
* Bosch AL9355X
* Denso 104210-3690, 104210-3691
* J&N Electrical Products 400-52290, 400-52290R
* Lester 11206
* Lucas Electric LRA02880
* Rover YLE500190, YLE500190E

Fits Models:

* Land Rover LR3 4.4L 2005, 2006, 2007, 2008, 2009
* Land Rover LR3 4394cc, 4.4L V8 2005, 2006, 2007, 2008, 2009
* Land Rover LR3 4394cc, 4.4L V8 2006, 2007, 2008
* Land Rover RANGE ROVER SPORT 4.2L 2006, 2007, 2008, 2009
* Land Rover RANGE ROVER SPORT 4.4L 2006, 2007, 2008, 2009
* Land Rover Range Rover Sport 4196cc, 4.2L V8 2006, 2007, 2008, 2009
* Land Rover Range Rover Sport 4394cc, 4.4L V8 2006, 2007, 2008
* Land Rover Range Rover Sport 4394cc, 4.4L V8 2006, 2007, 2008, 2009
* Land Rover RANGE ROVER 4.2L 2006, 2007, 2008, 2009
* Land Rover RANGE ROVER 4.4L 2006, 2007, 2008, 2009
* Land Rover Range Rover 4196cc, 4.2L V8 2006, 2007, 2008, 2009
* Land Rover Range Rover 4394cc, 4.4L V8 2006, 2007, 2008, 2009

Specifications:

* Lester 11206
* Family Denso SC (Hairpin)
* Volt 12
* Amps 150
* Condition Remanufactured
* Regulator Clock 7:30
* Rotation Direction Clockwise
* Mount Hole 1 Type Slotted
* Mount Hole 2 Type Unthreaded
* Mount Hole ID 3 11.800mm
* Mount Hole 3 Type Unthreaded
* Mounting Ear Thickness 1.976"
* Mounting Ear Thickness 50.200mm
* Mounting Ear 2 Thickness 1.976"
* Mounting Ear 2 Thickness 50.200mm
* Mounting Ear 3 Thickness 1.583"
* Mounting Ear 3 Thickness 40.200mm
* Fan Location Internal
* Regulator Location Internal
* Terminal ID 2 B+
* Terminal 2 Size M8x1.25
* Terminal ID 3 LI
* Terminal 3 Size Spade
* Terminal ID 4 RC
* Terminal 4 Size Spade
* Terminal ID 5 BVS
* Terminal 5 Size Spade
* Polarity Negative
* Number of Grooves 6
* Pulley Type Solid
* Pulley Outer Diameter 2.386"
* Pulley Outer Diameter 60.600mm
