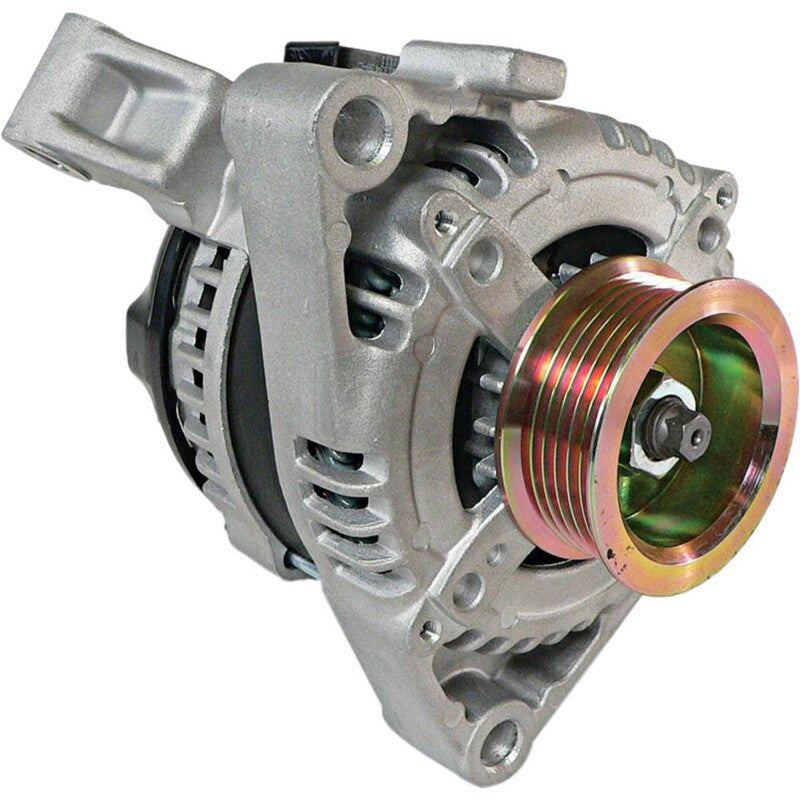

12V 155A Alternator for Cadillac CTS 2004-2007, Remanufactured, Denso Fit

12V 155A Alternator for Cadillac CTS 2004-2007, Remanufactured, Denso Fit

* Made to OEM Specs To Provide A Direct Fitment & Easy Install!
* Manufactured With High Grade Materials By an Industry Leader
* Ships Same Day If Ordered & Paid By 11AM EST

OEM Cross References:
References

* ArrowheadAND0404
* Denso104210-3340, 104210-4380
* General Motors25750935, 25766345
* J&N Electrical Products400-52370, 400-52370R
* Lester11037
* Lucas ElectricLRA03924

Fits Models:

Applications

Make
Model
Engine
Year
Notes

* Cadillac CTS 346 cu in, 5.7L V8 2004, 2005
* Cadillac CTS 346 cu in, 5.7L V8 2004, 2005
* Cadillac CTS 364 cu in, 6.0L V8 2006, 2007
* Cadillac CTS 364 cu in, 6.0L V8 2006, 2007
* Cadillac CTS 5700 cc, 5.7L V8 2004, 2005
* Cadillac CTS 5700 cc, 5.7L V8 2004, 2005
* Cadillac CTS 5967 cc, 6.0L V8 2006, 2007
* Cadillac CTS 5967 cc, 6.0L V8 2006, 2007

Specifications:
Lester11037
FamilyDenso SC (Hairpin)
Volt12
Amps150
ConditionRemanufactured
Regulator Clock12:00
Rotation DirectionClockwise
Mount Hole ID 112.300 mm
Mount Hole 1 TypeUnthreaded
Mount Hole 2 TypeUnthreaded
Mount Hole ID 312.700 mm
Mount Hole 3 TypeUnthreaded
Mounting Ear Thickness1.299"
Mounting Ear Thickness33 mm
Mounting Ear 2 Thickness1.378"
Mounting Ear 2 Thickness35 mm
Mounting Ear 3 Thickness1.299"
Mounting Ear 3 Thickness33 mm
Fan LocationInternal
Regulator LocationInternal
Terminal ID 2B+
Terminal 2 SizeM6x1.00
Terminal ID 3F
Terminal 3 SizeSpade
Terminal ID 4L
Terminal 4 SizeSpade
PolarityNegative
Number of Grooves6
Groove OD2.559"
Groove OD65 mm
Pulley TypeSolid
Pulley Outer Diameter2.811"
Pulley Outer Diameter71.400 mm
