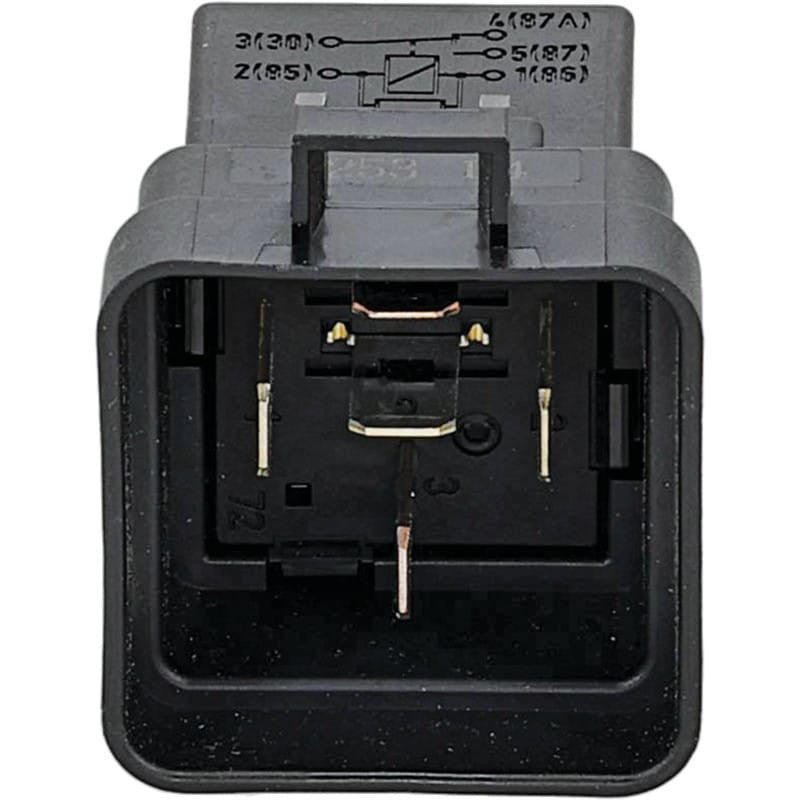

12V 20/40A Mini Relay SPDT Continuous Duty with Mounting Bracket

12V 20/40A Mini Relay SPDT Continuous Duty with Mounting Bracket

* Made to OEM Specs to Provide a Direct Fitment & Easy Install!
* Manufactured with High Grade Materials by an Industry Leader
* Ships Same Day if Ordered & Paid by 11AM EST

OEM Cross References:
References

* Arrowhead: 7794301
* Bosch: 0332204184
* Hella: 007794301, 007794307, 4RD007794-30, 7794301, 87411, 87414, H41388121, H41388221

Specifications:

* Volt: 12
* Amps: 40
* Terminal ID 2: 30
* Terminal 2 Size: 6.3mm x 0.8mm
* Terminal ID 3: 85
* Terminal 3 Size: 6.3mm x 0.8mm
* Terminal ID 4: 86
* Terminal 4 Size: 6.3mm x 0.8mm
* Terminal ID 5: 87
* Terminal 5 Size: 6.3mm x 0.8mm
* Terminal ID 6: 87a
* Terminal 6 Size: 6.3mm x 0.8mm
* Cap Composition: Plastic
* Contact Config: Single Pole, Double Throw (SPDT)
* Duty Cycle: Continuous
* Includes: Change Over Contacts, Mounting Bracket
* No of Terminals: 5
* Plated Terminals: FALSE
* Resistance Type: Resistor
* Resistance: 680 ohms
* Weatherproof Skirt: Included
