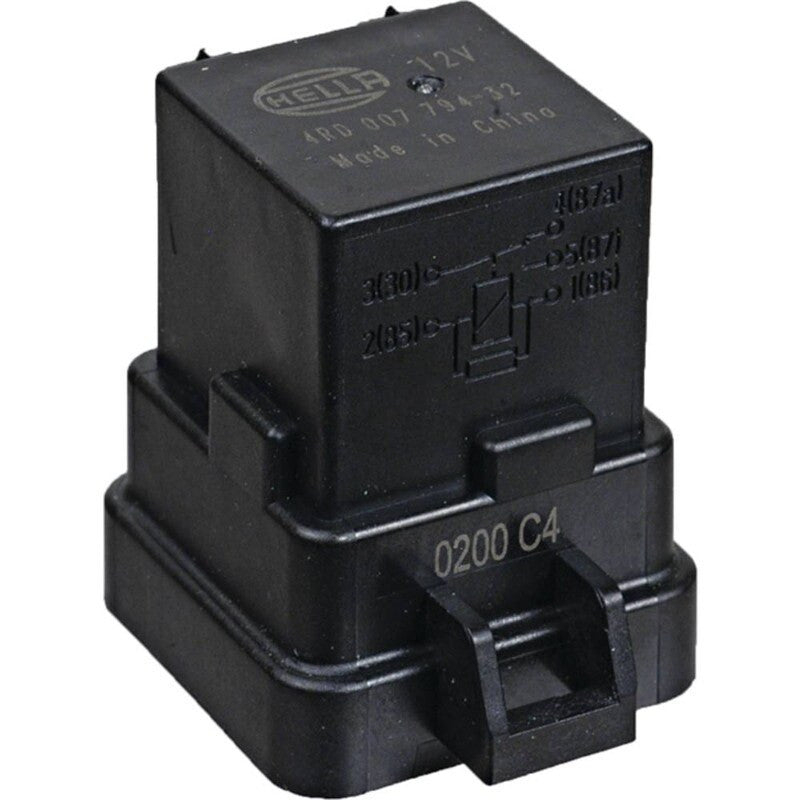

12V 20/40A Power Relay SPDT Continuous Duty 5 Terminals Change Over Contacts

12V 20/40A Power Relay SPDT Continuous Duty 5 Terminals Change Over Contacts

* Made to OEM Specs To Provide A Direct Fitment & Easy Install!
* Manufactured With High Grade Materials By an Industry Leader
* Ships Same Day If Ordered & Paid By 11AM EST

OEM Cross References:
References

* Arrowhead: 7794321
* Bosch: 0332204185
* Hella: 007794321, 007794327, 4RD007794-32, 4RD960388-13, 7794321, 87405, 87408, 87413, H41388021, H41388131, H41388321
* J&N Electrical Products: 240-01081

Specifications:

* Volt: 12
* Amps: 40
* Terminal ID 2: 30
* Terminal 2 Size: 6.3mm x 0.8mm
* Terminal ID 3: 85
* Terminal 3 Size: 6.3mm x 0.8mm
* Terminal ID 4: 86
* Terminal 4 Size: 6.3mm x 0.8mm
* Terminal ID 5: 87
* Terminal 5 Size: 6.3mm x 0.8mm
* Terminal ID 6: 87a
* Terminal 6 Size: 6.3mm x 0.8mm
* Cap Composition: Plastic
* Contact Config: Single Pole, Double Throw (SPDT)
* Duty Cycle: Continuous
* Includes: Change Over Contacts
* No of Terminals: 5
* Plated Terminals: FALSE
* Resistance Type: Resistor
* Skirted: TRUE
