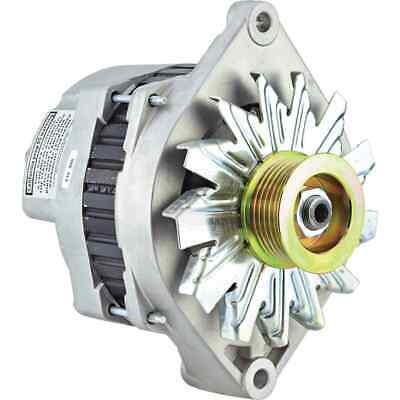

12V 250A Alternator CS144 High Output for Buick Cadillac Chevrolet Pontiac

12V 250A Alternator CS144 High Output for Buick, Cadillac, Chevrolet, Pontiac

* Made to OEM Specs to Provide a Direct Fitment & Easy Install!
* Manufactured with High Grade Materials by an Industry Leader
* Ships Same Day if Ordered & Paid by 11AM EST

OEM Cross References:

* Arrowhead: ADR0211, ADR0211-250
* Delco: 10463120, 1101454, 321-411, 334-2319
* J&N Electrical Products: 400-12462, 400-12463
* Lucas Electric: LRA01788

Fits Models:

* Buick REGAL 231cu in, 3.8L V6 1987
* Cadillac BROUGHAM 350cu in, 5.7L V8 1990
* Cadillac BROUGHAM 350cu in, 5.7L V8 1991, 1992
* Cadillac Brougham 5700cc, 5.7L V8 1990, 1992
* Cadillac Commercial Chassis 5700cc, 5.7L V8 1992
* Chevrolet Caprice Sedan 5000cc, 5.0L V8 1989, 1990
* Chevrolet CAPRICE 262cu in, 4.3L V6 1989, 1990
* Chevrolet CAPRICE 305cu in, 5.0L V8 1989, 1990
* Chevrolet CAPRICE 305cu in, 5.0L V8 1991
* Chevrolet CAPRICE 305cu in, 5.0L V8 1992
* Chevrolet CAPRICE 305cu in, 5.0L V8 1993
* Chevrolet CAPRICE 350cu in, 5.7L V8 1989, 1990
* Chevrolet CAPRICE 350cu in, 5.7L V8 1991, 1992, 1993
* Chevrolet Caprice 4300cc, 4.3L V6 1989, 1990
* Chevrolet Caprice 5000cc, 5.0L V8 1989, 1990
* Chevrolet Caprice 5700cc, 5.7L V8 1989, 1990, 1991, 1992, 1993
* Pontiac FIREBIRD 231cu in, 3.8L V6 1989

Specifications:

* Family: Delco CS144
* Volt: 12
* Amps: 250
* Condition: New
* Regulator Clock: 5:00
* Quality Type: High Output Standard
* Mount Hole ID 1: 10.200mm
* Mount Hole 1 Type: Unthreaded
* Mount Hole 2 Type: Unthreaded
* Mounting Ear Thickness: 0.787" / 20mm
* Mounting Ear 2 Thickness: 1.969" / 50mm
* Fan Location: External
* Regulator Location: Internal
* Terminal ID 2: B+
* Terminal 2 Size: M6x1.00
* Terminal ID 3: STA
* Terminal 3 Size: Spade
* Terminal ID 4: L
* Terminal 4 Size: Spade
* Terminal ID 5: IG
* Terminal 5 Size: Spade
* Terminal ID 6: S
* Terminal 6 Size: Spade
* Polarity: Negative
* Number of Grooves: 6
* Groove OD: 2.185" / 55.500mm
* Pulley Type: Solid
* Pulley Outer Diameter: 2.362" / 60mm
* Warranty: 1 Year
