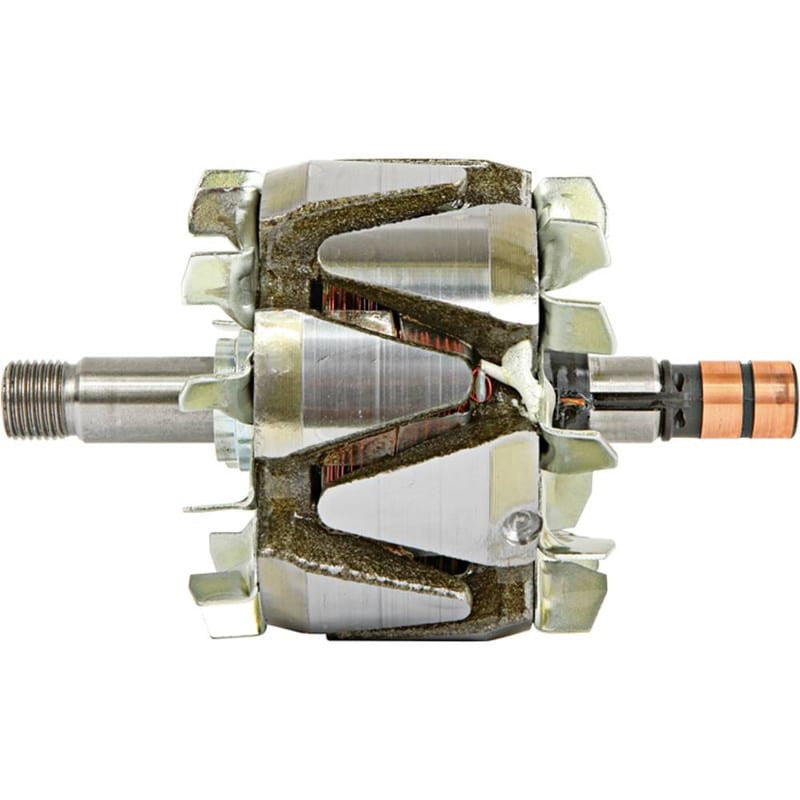

12V 90A Rotor for Bosch, Fiat, Mercedes, Nissan, VW, Iveco, Renault

12V 90A Rotor for Bosch, Fiat, Mercedes, Nissan, VW, Iveco, Renault

* Made to OEM Specs To Provide A Direct Fitment & Easy Install!
* Manufactured With High Grade Materials By an Industry Leader
* Ships Same Day If Ordered & Paid By 11AM EST

OEM Cross References:
References

* Arrowhead: 303-24020, ABO3021
* Bosch: 1-124-034-427, 1-124-034-457, 1-124-034-929, F00M111602, F00M111613, F00M111615, F00M111636, F00M121602, F00M121611, F-00M-121-611, F00M121613, F00M121615, F00M121622, F00M121636
* Fiat: 8994482, 9947070, 9949387
* Iveco: 42533809
* J&N Electrical Products: 303-24012, 303-24020
* Lester: 487
* Mercedes: 000.154.71.15, 0001547115
* Nissan: 23108-69T15
* Renault: 5001850054, 7701048231
* Volkswagen: 038903213, 038-903-213

Specifications:

* Lester: 487
* Quality Type: Standard
* Volt: 12
* High Amps: 90
* Low Amps: 90
* Industry Number: 6003-2RS
* Condition: New
* Body OD: 3.661"
* Body OD: 93mm
* Shaft Bearing OD: 0.669"
* Shaft Bearing OD: 17mm
* Slip Ring ID: 0.276"
* Slip Ring ID: 7mm
* Slip Ring OD: 0.610"
* Slip Ring OD: 15.500mm
* Length: 153 mm
* Length: 6.024"
* Poles Thickness: 1.988"
* Poles Thickness: 50.500mm
* Shaft Pulley OD: 0.669"
* Shaft Pulley OD: 17mm
* Shaft: M16-1.5
* Number of Rotor Poles: 12
