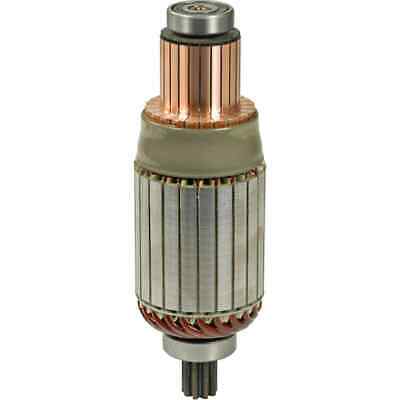

12V Armature for Various Models, New, Clockwise Rotation, Includes Bearings

12V Armature for Various Models, New, Clockwise Rotation, Includes Bearings

* Made to OEM Specs to Provide a Direct Fitment & Easy Install!
* Manufactured with High Grade Materials by an Industry Leader
* Ships Same Day if Ordered & Paid by 11AM EST

OEM Cross References:

* Arrowhead: ND028200-1780, ND028200-1900, ND028200-6230, SND3002
* Caterpillar: 7T6091
* Denso: 028200-1780, 028200-1900, 028200-6220, 028200-623, 028200-6230
* Isuzu: 5811210220
* J&N Electrical Products: 300-52000, 300-52006
* Lester: 2594, 2598, 2764, 2921, 2955, 2961

Specifications:

* Lester: 2594, 2598, 2764, 2921, 2955, 2961
* Critical Note: DE Diameter at Splines OD
* Volt: 12
* Condition: New
* Rotation Direction: Clockwise
* Body OD: 2.362"
* Body OD: 60mm
* CE OD: 0.394"
* CE OD: 10mm
* DE OD: 0.646"
* DE OD: 16.400mm
* Length: 186.800 mm
* Length: 7.354"
* CE to Stop: 8.600
* DE to Stop: 33.600
* Lam Stack Thickness: 2.543"
* Lam Stack Thickness: 64.600mm
* Number of Splines: 9
* Splines Type: Straight
* Includes CE & DE Bearings
