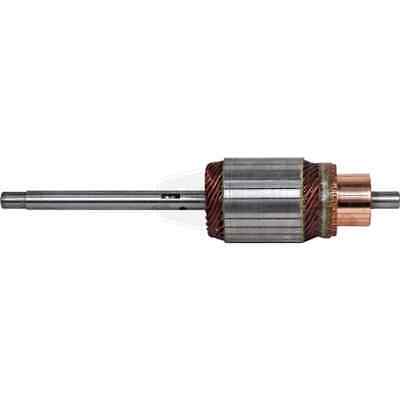

12V CW Armature 10MT New 300-12056 for Delco Arrowhead Lester 1855

12V CW Armature 10MT New 300-12056 for Delco Arrowhead Lester 1855

* Made to OEM Specs To Provide A Direct Fitment & Easy Install!
* Manufactured With High Grade Materials By an Industry Leader
* Ships Same Day If Ordered & Paid By 11AM EST

OEM Cross References:

* Arrowhead: SDR3057
* Delco: 1947996
* J&N Electrical Products: 300-12056, 300-12056R
* Lester: 1855

Specifications:

* Lester: 1855
* Volt: 12
* Condition: New
* Rotation Direction: Clockwise
* Body OD: 2.500"
* Body OD: 63.500mm
* CE OD: 0.563"
* CE OD: 14.300mm
* DE OD: 0.563"
* DE OD: 14.300mm
* Length: 12.610"
* Length: 320.300 mm
* CE to Stop: 22
* DE to Stop: 183.500
* Lam Stack Thickness: 2.508"
* Lam Stack Thickness: 63.700mm
* Low Torque @ Set Screw & Keyway on DE
