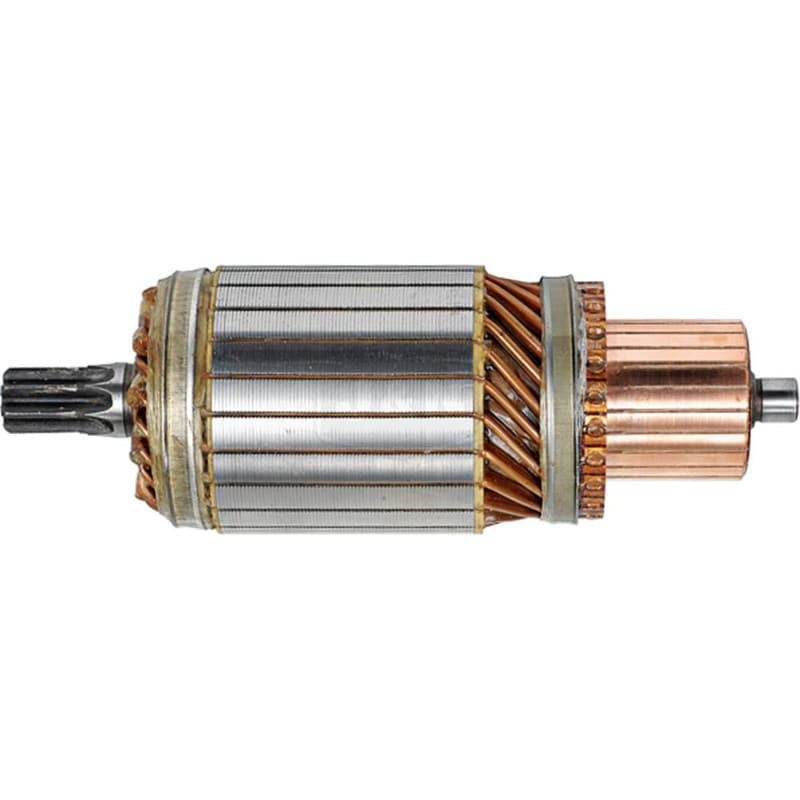

12V CW Armature 28MT for Ford, Delco, Peterbilt, Arrowhead, New

12V CW Armature 28MT for Ford, Delco, Peterbilt, Arrowhead, New

* Made to OEM Specs To Provide A Direct Fitment & Easy Install!
* Manufactured With High Grade Materials By an Industry Leader
* Ships Same Day If Ordered & Paid By 11AM EST

OEM Cross References:
References

* Arrowhead: 300-12090, SNK3000
* Delco: 10456466, D4161
* Ford: F3HZ11005A, F3HZ-11005-A, SM488
* J&N Electrical Products: 300-12090, 300-12090R, 300-12098, 300-50000
* Lester: 2856, 2922
* Nikko: 0-23100-0311, 0-23100-0312, 0-23100-0315, 0-23100-0316, 0-23100-0317
* Peterbilt: PSA1026
* ZM Solenoids: ZM83.805.02

Specifications:

* Lester: 2856, 2922
* Critical Note: DE Diameter at Splines OD
* Volt: 12
* Condition: New
* Quality Type: Standard
* Rotation Direction: Clockwise
* Body OD: 2.366"
* Body OD: 60.100mm
* CE OD: 0.394"
* CE OD: 10mm
* DE OD: 0.626"
* DE OD: 15.900mm
* Length: 177.400 mm
* Length: 6.984"
* CE to Stop: 9
* DE to Stop: 30
* Lam Stack Thickness: 2.386"
* Lam Stack Thickness: 60.600mm
* Number of Splines: 8
* Splines Type: Straight
