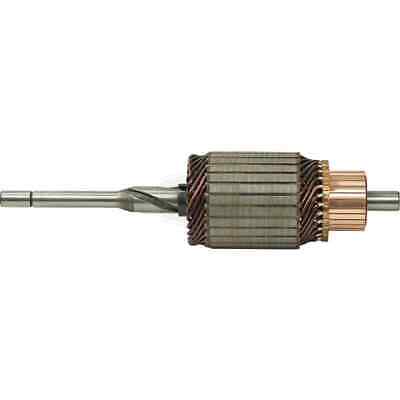

12V CW Armature 300-12034 for Delco, Arrowhead, Lester - New Condition

12V CW Armature 300-12034 for Delco, Arrowhead, Lester - New Condition

* Made to OEM Specs to Provide a Direct Fitment & Easy Install!
* Manufactured with High Grade Materials by an Industry Leader
* Ships Same Day if Ordered & Paid by 11AM EST

OEM Cross References:

* Arrowhead: SDR3095
* Delco: 1935829, 1954473, 1955937, 1966224, 1966228, 1971568, 830842, D4119, D4122, D4125
* J&N Electrical Products: 300-12034R
* Lester: 1729, 2282
* Other OEMs: CS88

Specifications:

* Lester: 1729, 2282
* Volt: 12
* Condition: New
* Rotation Direction: Clockwise
* Body OD: 2.701"
* Body OD: 68.600mm
* CE OD: 0.563"
* CE OD: 14.300mm
* DE OD: 0.469"
* DE OD: 11.900mm
* Length: 11.083"
* Length: 281.500 mm
* CE to Stop: 23.500
* DE to Stop: 146.400
* Lam Stack Thickness: 2.579"
* Lam Stack Thickness: 65.500mm
* Number of Splines: 3
* Splines Type: Spiral
* Low Torque
