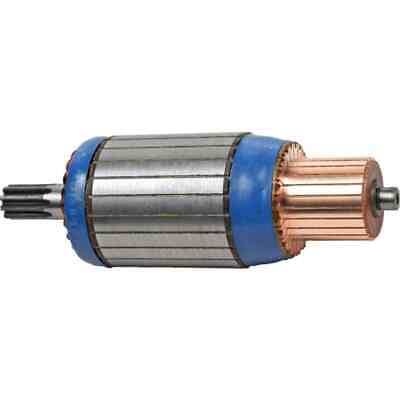

12V CW Armature for Denso, New, Fits Multiple Models, 9 Splines, 300-52006

12V CW Armature for Denso, New, Fits Multiple Models, 9 Splines, 300-52006

* Made to OEM Specs To Provide A Direct Fitment & Easy Install!
* Manufactured With High Grade Materials By an Industry Leader
* Ships Same Day If Ordered & Paid By 11AM EST

OEM Cross References:

* Arrowhead: 300-52000, ND028200-1780, ND028200-1900, ND028200-6230, SND3002
* CaseIH: A47242
* Caterpillar: 7T6091
* Denso: 028200-1780, 028200-1900, 028200-6220, 028200-6230
* Isuzu: 5811210220
* J&N Electrical Products: 300-52000, 300-52006
* Lester: 2594, 2598, 2764, 2921, 2955, 2961

Specifications:

* Lester: 2594, 2598, 2764, 2921, 2955, 2961
* Critical Note: DE Diameter at Splines OD
* Volt: 12
* Condition: New
* Quality Type: Standard
* Rotation Direction: Clockwise
* Body OD: 2.362" / 60mm
* CE OD: 0.394" / 10mm
* DE OD: 0.646" / 16.400mm
* Length: 186.800 mm / 7.354"
* CE to Stop: 8.600
* DE to Stop: 33.600
* Lam Stack Thickness: 2.543" / 64.600mm
* Number of Splines: 9
* Splines Type: Straight
* Bearings: Without Bearings
