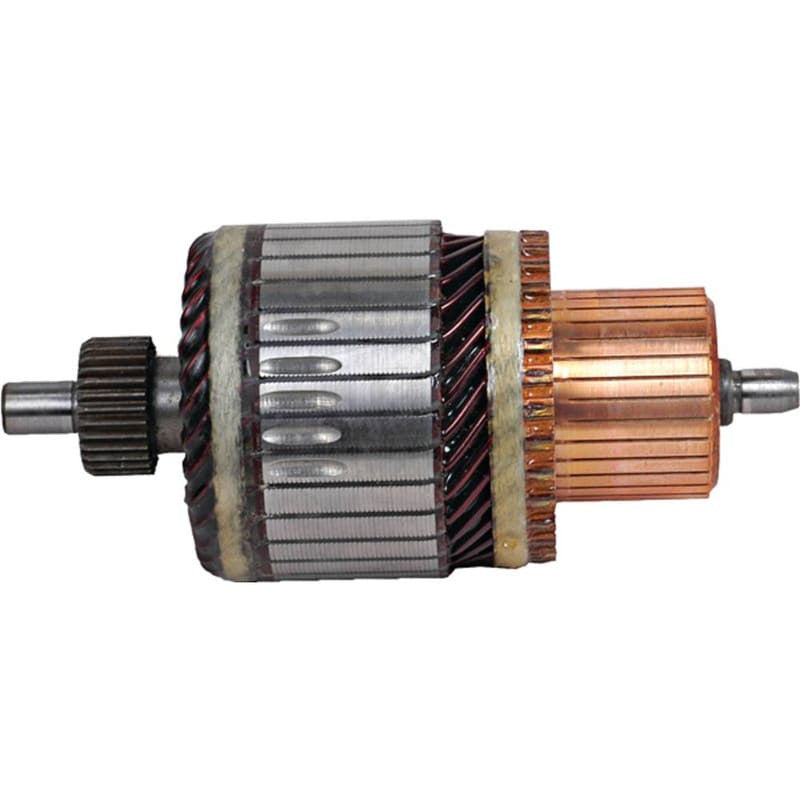

12V CW Armature for PG Series - New, 31 Splines, Clockwise Rotation

12V CW Armature for PG Series - New, 31 Splines, Clockwise Rotation

* Made to OEM Specs to Provide a Direct Fitment & Easy Install!
* Manufactured with High Grade Materials by an Industry Leader
* Ships Same Day if Ordered & Paid by 11AM EST

OEM Cross References:
References

* Arrowhead: SDR3006
* Delco: 10498616, D4153
* J&N Electrical Products: 300-12088, 300-12088R
* Lester: 2743
* Peterbilt: PSA1024

Specifications:

* Lester: 2743
* Volt: 12
* Condition: New
* Rotation Direction: Clockwise
* Body OD: 2.480"
* Body OD: 63mm
* CE OD: 0.315"
* CE OD: 8mm
* DE OD: 0.374"
* DE OD: 9.500mm
* Length: 139.700 mm
* Length: 5.500"
* CE to Stop: 11.900
* DE to Stop: 12.700
* Lam Stack Thickness: 1.224"
* Lam Stack Thickness: 31.100mm
* Number of Splines: 31
* Splines Type: Straight
