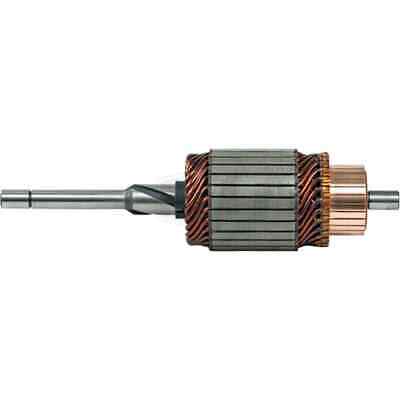

12V CW Armature for Starters, New, 3 Splines, 5MT, 300-12030, 242mm Long

12V CW Armature for Starters, New, 3 Splines, 5MT, 300-12030, 242mm Long

* Made to OEM Specs to Provide a Direct Fitment & Easy Install!
* Manufactured with High Grade Materials by an Industry Leader
* Ships Same Day if Ordered & Paid by 11AM EST

OEM Cross References:

* Arrowhead: SDR3048
* Delco: 10456407, 10495958, 1984504, D4134, D4139, D4156
* J&N Electrical Products: 300-12030R
* Lester: 2089

Specifications:

* Lester: 2089
* Volt: 12
* Condition: New
* Rotation Direction: Clockwise
* Body OD: 2.453"
* Body OD: 62.300mm
* CE OD: 0.469"
* CE OD: 11.900mm
* DE OD: 0.469"
* DE OD: 11.900mm
* Length: 242.100 mm
* Length: 9.531"
* CE to Stop: 18.300
* DE to Stop: 106.300
* Lam Stack Thickness: 2.091"
* Lam Stack Thickness: 53.100mm
* Number of Splines: 3
* Splines Type: Spiral
* Starters with 4.175"/106.0mm Long Field Case
