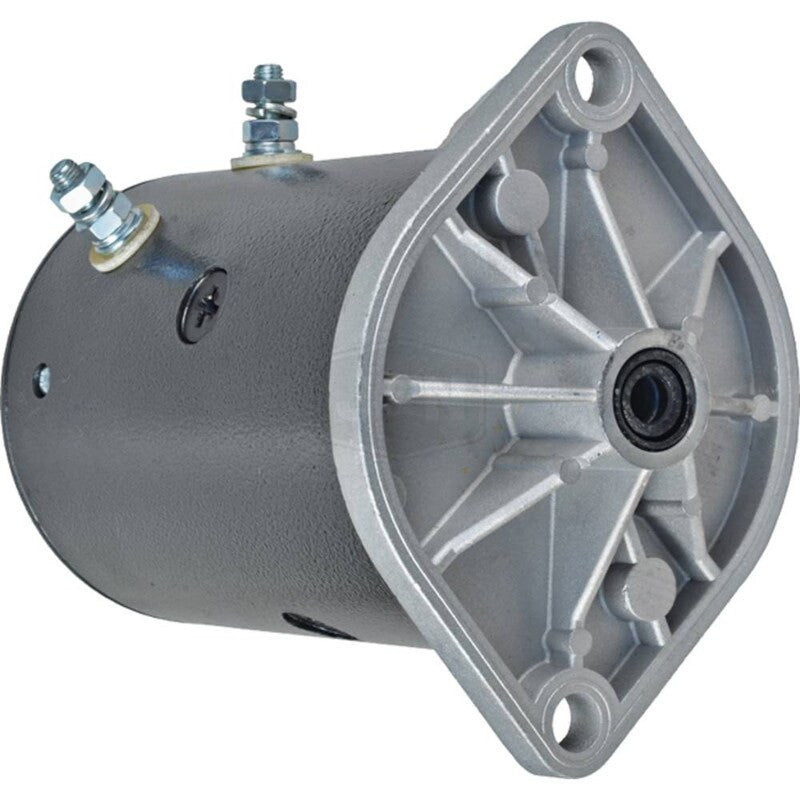

12V Snow Plow Motor, New, Clockwise Rotation, 1.609 HP, Fully Insulated

12V Snow Plow Motor, New, Clockwise Rotation, 1.609 HP, Fully Insulated

* Made to OEM Specs to Provide a Direct Fitment & Easy Install!
* Manufactured with High Grade Materials by an Industry Leader
* Ships Same Day if Ordered & Paid by 11AM EST

OEM Cross References:
References

* Arrowhead: LPL0045
* Fisher: 21500K, 21500K-1
* J&N Electrical Products: 430-20054, 430-20064, 430-20065, 430-22003
* Lester: 10757
* Prestolite: 46-2584, 46-3618, MUE6103, MUE6103S, MUE6111, MUE6111S, MUE6206
* Wapsa: 9130450099
* Western Plow: 25209, 56133

Specifications:

* Lester: 10757
* Critical Note: Fully Insulated
* Volt: 12
* Power: 1.200 kW
* HP: 1.609
* Condition: New
* Rotation Direction: Clockwise
* OD: 114.100 mm
* OD: 4.492"
* Shaft OD: 0.630"
* Shaft OD: 16 mm
* Length: 179.400 mm
* Length: 7.063"
* Terminal 2 Size: 5/16-18
* Terminal 3 Size: 5/16-18
* Shaft: Slotted
* Current Type: DC
* Warranty: 1 Year
* Rear Bushing @ Terminals at CE End
