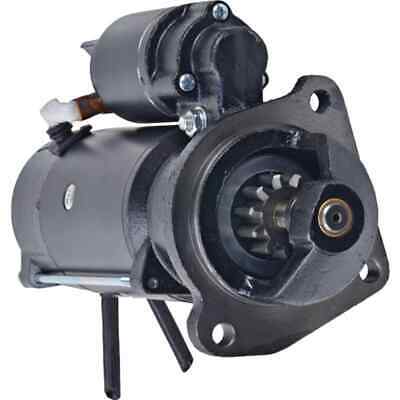

12V Starter Motor 11 Teeth Planetary Gear Reduction New Electric Starter

12V Starter Motor 11 Teeth Planetary Gear Reduction New Electric Starter

* Made to OEM Specs To Provide A Direct Fitment & Easy Install!
* Manufactured With High Grade Materials By an Industry Leader
* Ships Same Day If Ordered & Paid By 11AM EST

OEM Cross References:

* Arrowhead: IS1105, MS84, SIA0003
* CaseIH: 32009452
* Delco: DRS0117
* J&N Electrical Products: 410-29035
* JCB: 320/09022, 320/09035, 320/09346, 320/09409, 32009022, 32009032, 32009035, 32009144, 32009346
* Lester: 30230
* Letrika/Iskra: 11.131.292, 11.131.697, 11.131.711, 11.131.848, AZF4181, AZF4186, AZF4224, AZF4576, IS 1105
* Lucas Electric: LRS02489
* Mahle: 11.131.292, 11.131.697, 11.131.711, 11.132.113, AZF4181, AZF4186, AZF4224, AZF4301, AZF4576, IS1105, MS84

Specifications:

* Lester: 30230
* Critical Note: Fully Insulated
* Family: Letrika/MAHLE AZF41
* Volt: 12
* Power: 4.200 kW
* HP: 5.632
* Condition: New
* Rotation Direction: Clockwise
* Electric Starter Type: Planetary Gear Reduction (PLGR)
* Number of Teeth: 11
* Gear OD: 1.622"
* Gear OD: 41.200 mm
* Mount Hole ID 1: 10.900 mm
* Mount Hole 1 Type: Unthreaded
* Mount Hole 2 Type: Unthreaded
* Mount Hole ID 3: 10.900 mm
* Mount Hole 3 Type: Unthreaded
* Warranty: 1 Year
