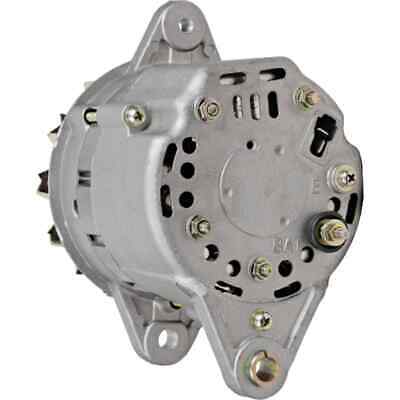

24V 20A Alternator for Isuzu Mitsubishi TCM Equipment - New, 1 Year Warranty

24V 20A Alternator for Isuzu Mitsubishi TCM Equipment - New, 1 Year Warranty

* Made to OEM Specs To Provide A Direct Fitment & Easy Install!
* Manufactured With High Grade Materials By an Industry Leader
* Ships Same Day If Ordered & Paid By 11AM EST

OEM Cross References:

* Arrowhead AHI0077, LR220-23, LR220-24
* Hitachi LR220-23, LR220-24
* Isuzu 5812003300, 5812003350
* J&N Electrical Products 400-44057
* Lester 12114
* Lucas Electric LRA02437

Fits Models:

* Isuzu 4JB1 1990
* Isuzu Misc. Industrial Equipment 4JB1
* Mitsubishi FD-10
* Mitsubishi FD-14
* Mitsubishi FD-15
* Mitsubishi FD-15T
* Mitsubishi FDC-20-D S4E
* Mitsubishi FDC-25-D S4E
* TCM Equipment FD20Z C240, Diesel
* TCM Equipment FD23Z C240, Diesel
* TCM Equipment FD25Z C240, Diesel
* TCM Equipment FD30Z C240, Diesel

Specifications:

* Lester 12114
* Volt 24
* Amps 20
* Condition New
* Regulator Clock 2:00
* Mount Hole ID 1 M8x1.25
* Mount Hole 1 Type Threaded
* Mount Hole 2 Type Unthreaded
* Mount Hole ID 3 8mm
* Mount Hole 3 Type Unthreaded
* Fan Location External
* Regulator Location Internal
* Terminal ID 2 B+
* Terminal 2 Size M5x0.8
* Polarity Negative
* Number of Grooves 1
* Pulley Type Solid
* Pulley Outer Diameter 2.835"
* Pulley Outer Diameter 72mm
* Warranty 1 Year
* 80mm Between Bottom Mounting Ears @ 2-Blade Plug @ Belt Width 11mm
