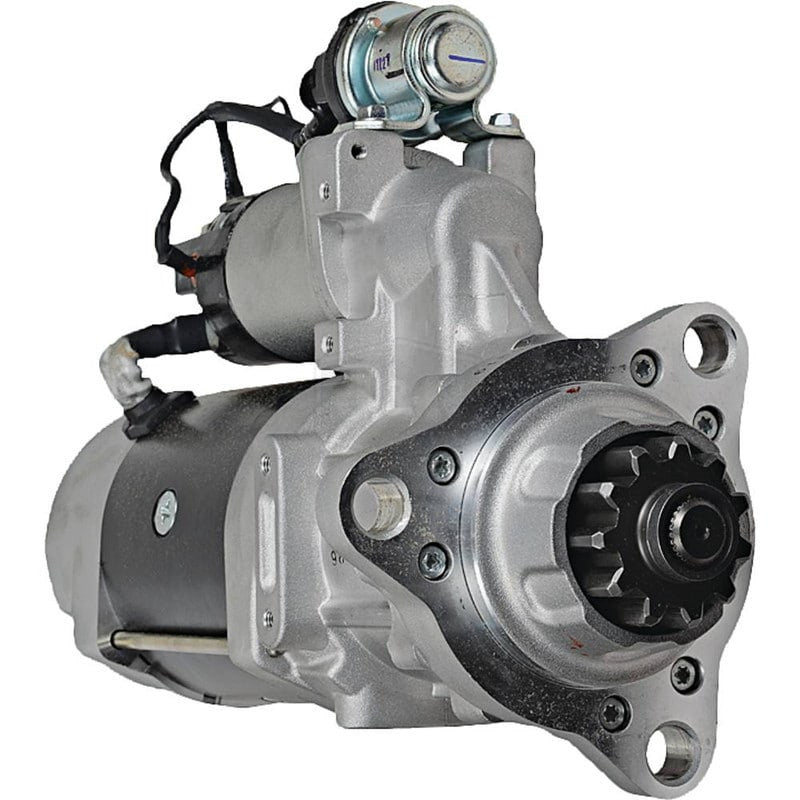

24V 39MT Starter Motor for Caterpillar, CaseIH, Cummins, Diesel Engines

24V 39MT Starter Motor for Caterpillar, CaseIH, Cummins, Diesel Engines

* Made to OEM Specs To Provide A Direct Fitment & Easy Install!
* Manufactured With High Grade Materials By an Industry Leader
* Ships Same Day If Ordered & Paid By 11AM EST

OEM Cross References:
References

* Arrowhead D19011522, D19011523, D61003202, D8200330, D8200699, D8200719, SDR0313, SDR0314, SDR0317, SDR0330, SDR0333, SDR0472
* CaseIH 87439325
* Cummins 2871256, 3103305, 3103916, 3103952, 5284083, 5284085
* Delco 10461754, 10461756, 10479119, 10479120, 19011507, 19011509, 19011522, 19011523, 19011527, 61003202, 8200009, 8200022, 8200032, 8200034, 8200039, 8200041, 8200284, 8200321, 8200330, 8200410, 8200412, 8200430, 8200522, 8200614, 8200699, 8200704, 8200706, 8200709, 8200719, 8200724, 8200725, 8201037, 8201055, 8300016, 8300018, 8300036
* Denso 282-0118
* Ford/New Holland 87439325
* J&N Electrical Products 410-12276, 410-12286, 410-12312, 410-12320, 410-12709
* Leece Neville M105702, M105R3502SE
* Lester 6819, 6829, 6837, 6851, 6852, 6853, 6993, 6994
* Lucas Electric LRS04040
* Mitsubishi M9T82378, M9T83579

Fits Models:

Applications

Make
Model
Engine
Year
Notes

* Case/International Harvester 9040 6T-830 , Diesel
* Case/International Harvester 9040B 6T-830 , Diesel
* Case/International Harvester 9045B 6T-830 , Diesel
* Caterpillar 16H 3406
* Caterpillar 16H 3406
* Caterpillar 621F 3406
* Caterpillar 824G 3406
* Caterpillar 824G 3406
* Caterpillar 825G 3406
* Caterpillar 825GII 3406E
* Caterpillar 826G 3406
* Caterpillar 826GII 3406E
* Caterpillar 980G 3406
* Caterpillar PM465 3406
* Champion 740A L-10 1995, 1996, 1997, 1998
* Champion 740A M11 1995, 1996, 1997, 1998
* Champion 750A L-10 1995, 1996, 1997, 1998
* Champion 750A M11 1995, 1996, 1997, 1998
* Champion 780A L-10 1995, 1996, 1997, 1998
* Champion 780A M11 1995, 1996, 1997, 1998
* Samsung SE350 M11
* Samsung SE350 M11
* Samsung SE450 M11
* Samsung SE450 M11

Specifications:
Lester 6819, 6829, 6837, 6851, 6852, 6853, 6993, 6994
Family Delco 39MT
Family Type 550
Volt 24
Power 9 kw
HP 12.069
Condition New
Rotation Direction Clockwise
Electric Starter Type Planetary Gear Reduction (PLGR)
Number of Teeth 11
Gear OD 2.185"
Gear OD 55.500mm
Solenoid Position 82
Length 14.323"
Length 363.800 mm
Mount Hole ID 1 16.700mm
Mount Hole 1 Type Unthreaded
Mount Hole ID 2 16.700mm
Mount Hole 2 Type Unthreaded
Mount Hole ID 3 16.700mm
Mount Hole 3 Type Unthreaded
Overcrank Protection TRUE
Semi Solid Link TRUE
Wet Clutch Seal TRUE
Includes Control Relay
Solenoid Position 82 "
