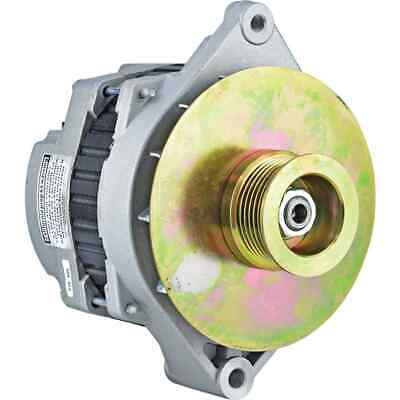

Alternator CS144 12V 120A for Cadillac Commercial Chassis & DeVille

Alternator CS144 12V 120A for Cadillac Commercial Chassis & DeVille

* Made to OEM Specs To Provide A Direct Fitment & Easy Install!
* Manufactured With High Grade Materials By an Industry Leader
* Ships Same Day If Ordered & Paid By 11AM EST

OEM Cross References:

* AC Delco Tools: 321-275, 321-367, 321-387, 321-399, 334-2297, 334-2356, RM1302
* Arrowhead: ADR0070
* Bosch: AL620X, AL623X
* Delco: 10463069, 10463096, 10463108, 10463330, 10497111, 1101239, 1101296, 1101329, 1101518, 1105657, 321-275, 321-367, 321-387, 321-399, 334-2297, 334-2356, RM1302
* J&N Electrical Products: 400-12435
* Lester: 7806-2, 7915, 7916-2

Fits Models:

* Cadillac Commercial Chassis 4100cc, 4.1L V8 1986, 1987
* Cadillac Commercial Chassis 4500cc, 4.5L V8 1988
* Cadillac DeVille 250cu in, 4.1L V8 1986, 1987
* Cadillac DeVille 273cu in, 4.5L V8 1988
* Cadillac Eldorado 250cu in, 4.1L V8 1986, 1987
* Cadillac Eldorado 273cu in, 4.5L V8 1988
* Cadillac Fleetwood 250cu in, 4.1L V8 1986, 1987
* Cadillac Fleetwood 273cu in, 4.5L V8 1988
* Cadillac Seville 250cu in, 4.1L V8 1986, 1987
* Cadillac Seville 273cu in, 4.5L V8 1988

Specifications:

* Lester: 7806-2, 7915, 7916-2
* Family: Delco CS144
* Volt: 12
* Amps: 120
* Condition: New
* Regulator Clock: 2:00
* Rotation Direction: Clockwise
* Mount Hole ID 1: M10x1.50
* Mount Hole 1 Type: Threaded
* Mount Hole 2 Type: Unthreaded
* Mounting Ear Thickness: 0.776" / 19.700mm
* Mounting Ear 2 Thickness: 2.012" / 51.100mm
* Fan Location: External
* Regulator Location: Internal
* Terminal ID 2: B+
* Terminal 2 Size: M6x1.00
* Terminal ID 3: P
* Terminal 3 Size: Spade
* Terminal ID 4: L
* Terminal 4 Size: Spade
* Terminal ID 5: FR
* Terminal 5 Size: Spade
* Terminal ID 6: S
* Terminal 6 Size: Spade
* Polarity: Negative
* Number of Grooves: 6
* Groove OD: 2.224" / 56.500mm
* Pulley Type: Solid
* Pulley Outer Diameter: 2.402" / 61mm
