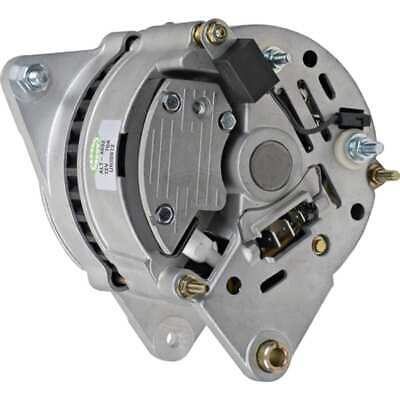

Alternator For Case IH 188590A1, 229301A1, 2293601A1, 231295A1 - 1 Year Warranty

Alternator For Case IH 188590A1, 229301A1, 2293601A1, 231295A1 - 1 Year Warranty

Replaces OEM

* ArrowheadIA0587, IA0706, IA0811, MG101, MG152, MG216
* Bosch0-986-036-060
* CaseIH188590A1, 229301A1, 2293601A1, 231295A1
* DelcoDRA0940, DRA3286, DRA3293
* J&N Electrical Products400-30006
* Lester12072, 12239
* Letrika/IskraIA 0587, IA 0706, IA 0811
* Lucas Electric24100, 24100B, 24145, 24145A, 24145D, 24155, 24155A, 24161, 24161A, 24161B, 24161C, 24161D, 24169, 24198, 24198A, 24198B, 24198E, 24200, 24200A, 24221, 24221A, 24221D, 24228, 24240, 24240A, 24241, 24260, 24260A, 24260B, 24297, 54022058, 54022058A, 54022058B, 54022059, 54022060, 54022060A, 54022162, 54022178, 54022186, 54022188, 54022192, 54022196, 54022196B, 54022214, 54022217, 54022227, 54022228, 54022234D, 54022235, 54022246, 54022251A, 54022263, 54022265, 54022275, 54022275A, 54022281B, 54022285, 54022291, 54022309, 54022312, 54022312A, 54022313A, 54022313B, 54022342, 54022379, 54022393, 54022474, 54022552, 54022635, 54022646, 54022648, 54022663, 54022666, 63324161, A2518, LRA00496, LRA00653, LRB00122
* Lucas TVS26045023
* MahleMG101, MG152, MG216
* Marelli063324161010, 24161, 63324145, 63324161, 63324198, 63324200, 63324221, MAN100, MAN104, MAN106, MAN119, MAN697, MAN701, MAN751
* Massey Ferguson1475-922-M91, 1475-923-M91, 3519406M91, 3523411M92
* Mercury Marine8M6007501
* Perkins2871A142, 2871A161
* RoverADU1148, ADU8810, ADU8858, ASU1238, AUU1036, AUU1053, AUU1184, PRC6367, RTC5846, YLE101560

Specs
Lester12072, 12239
Volt12
Amps55
ConditionNew
Rotation DirectionClockwise
Mount Hole ID 1M8x1.25
Mount Hole 1 TypeThreaded
Mount Hole 2 TypeUnthreaded
Mount Hole ID 38.200mm
Mount Hole 3 TypeUnthreaded
Mounting Ear Thickness0.433"
Mounting Ear Thickness11mm
Mounting Ear 2 Thickness0.433"
Mounting Ear 2 Thickness11mm
Mounting Ear 3 Thickness0.787"
Mounting Ear 3 Thickness20mm
Fan LocationExternal
Regulator LocationInternal
Terminal ID 2B+
Terminal 2 SizeM6x1.00 Spade
Terminal ID 3W
Terminal 3 SizeM5x0.8
PolarityNegative
Number of Grooves1
Pulley TypeSolid
Pulley Outer Diameter2.909"
Pulley Outer Diameter73.900mm
Warranty1 Year

* Made to OEM Specs To Provide A Direct Fitment & Easy Install!
* Manufactured With High Grade Materials By an Industry Leader
* 1 Year Manufacturer's Warranty
* Ships Same Day If Ordered & Paid By 11AM EST
