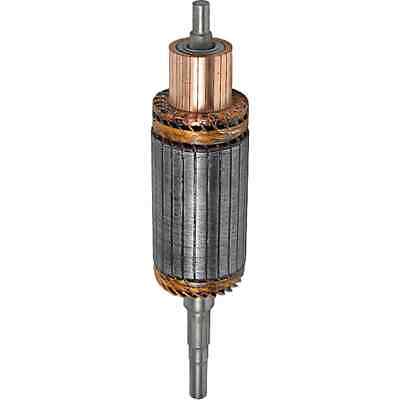

Armature 40MT 24V CW Remanufactured Electric Starter Motor Part 300-12011R

Armature 40MT 24V CW Remanufactured Electric Starter Motor Part 300-12011R

* Made to OEM Specs to Provide a Direct Fitment & Easy Install!
* Manufactured with High Grade Materials by an Industry Leader
* Ships Same Day if Ordered & Paid by 11AM EST

OEM Cross References:

* Arrowhead: 300-12011R
* J&N Electrical Products: 300-12011
* Lester: 1961

Specifications:

* Lester: 1961
* Volt: 24
* Condition: Remanufactured
* Rotation Direction: Clockwise
* Body OD: 3.331"
* Body OD: 84.600mm
* CE OD: 0.563"
* CE OD: 14.300mm
* DE OD: 0.689"
* DE OD: 17.500mm
* Length: 15.094"
* Length: 383.400 mm
* CE to Stop: 24.600
* DE to Stop: 146.800
* Lam Stack Thickness: 122.800mm
* Lam Stack Thickness: 4.835"
* Number of Splines: 6
* Splines Type: Straight
