Micro Relay 12V 35A with 5 Terminals, Change Over Contacts, Sealed Base

Micro Relay 12V 35A with 5 Terminals, Change Over Contacts, Sealed Base

* Made to OEM Specs To Provide A Direct Fitment & Easy Install!
* Manufactured With High Grade Materials By an Industry Leader
* Ships Same Day If Ordered & Paid By 11AM EST

OEM Cross References:
References

* Arrowhead 240-01083

Specifications:

* Volt 12
* Amps 35

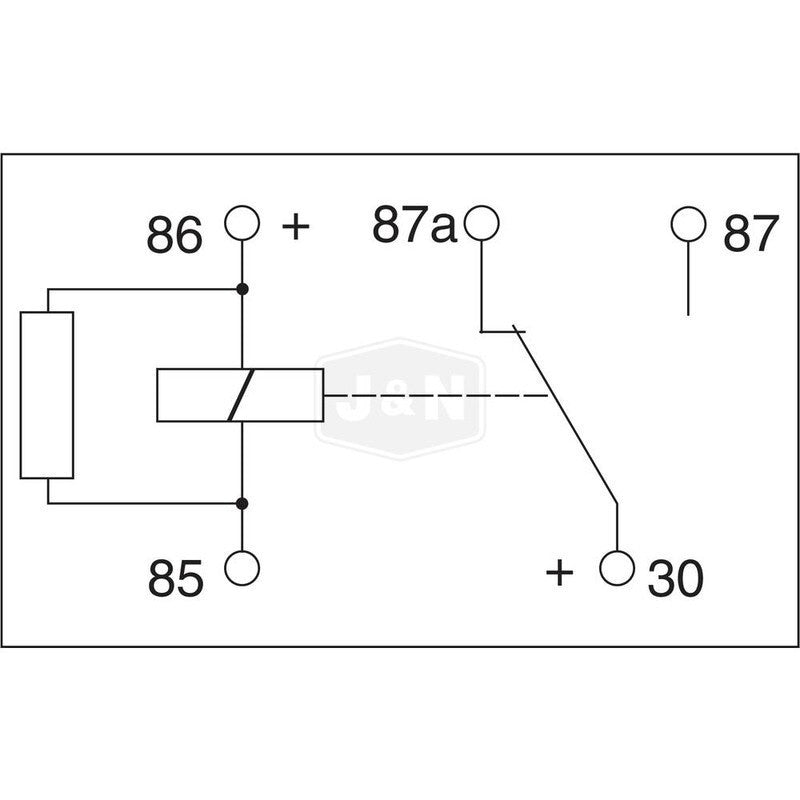

* Terminal ID 2 30
* Terminal 2 Size 2.8mm x 0.8mm
* Terminal ID 3 85
* Terminal 3 Size 2.8mm x 0.8mm
* Terminal ID 4 86
* Terminal 4 Size 2.8mm x 0.8mm
* Terminal ID 5 87
* Terminal 5 Size 2.8mm x 0.8mm
* Terminal ID 6 87a
* Terminal 6 Size 2.8mm x 0.8mm
* Includes Change Over Contacts
* No of Terminals 5
* Plated Terminals TRUE
* Resistance Type Resistor
* ISO 280 Footprint @ Sealed Base @ Tinned Terminals
