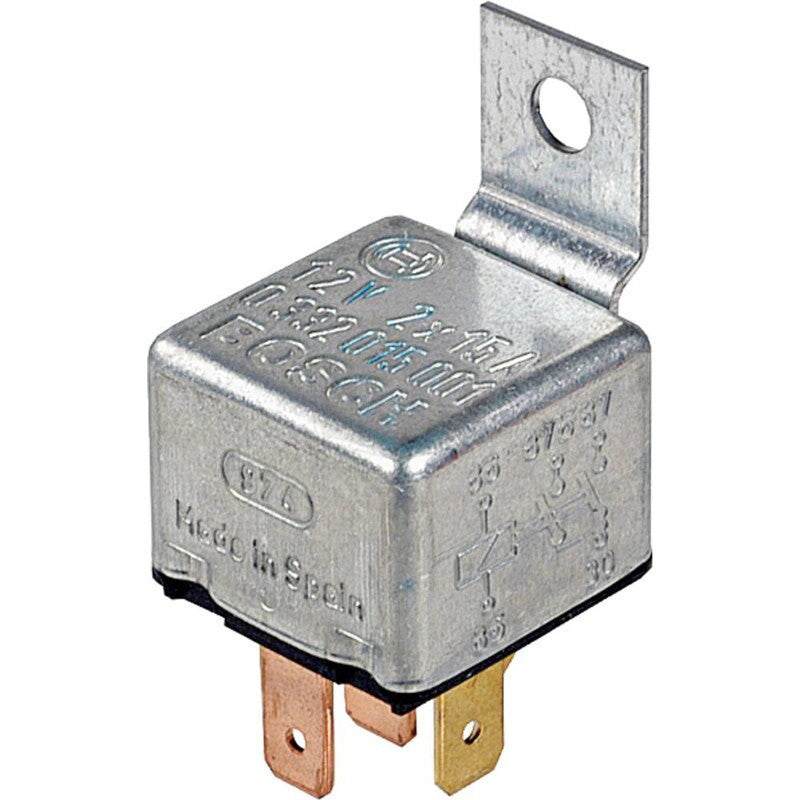

Mini Relay 12V 15A SPST Continuous Duty 5 Terminals with Mounting Bracket

Mini Relay 12V 15A SPST Continuous Duty 5 Terminals with Mounting Bracket

* Made to OEM Specs To Provide A Direct Fitment & Easy Install!
* Manufactured With High Grade Materials By an Industry Leader
* Ships Same Day If Ordered & Paid By 11AM EST

OEM Cross References:
References

* Arrowhead: B0332015001
* BMW: 61-31-1-358-170
* Bosch: 0332015001, 0332015001BLK
* Electrosystems Inc: 7700266096
* Mercedes: A0005458005
* Renault: 7700266296
* Volvo: 1235013

Specifications:

* Volt: 12
* Amps: 15
* Terminal ID 2: 30
* Terminal 2 Size: 6.3mm x 0.8mm
* Terminal ID 3: 85
* Terminal 3 Size: 6.3mm x 0.8mm
* Terminal ID 4: 86
* Terminal 4 Size: 6.3mm x 0.8mm
* Terminal ID 5: 87
* Terminal 5 Size: 6.3mm x 0.8mm
* Terminal ID 6: 87b
* Terminal 6 Size: 6.3mm x 0.8mm
* Cap Composition: Metal
* Contact Config: Single Pole, Single Throw (SPST)
* Duty Cycle: Continuous
* Includes: Double Make Contacts, Mounting Bracket
* No of Terminals: 5
* Plated Terminals: FALSE
* Resistance Type: Coil Only
* Resistance: 63 ohms
