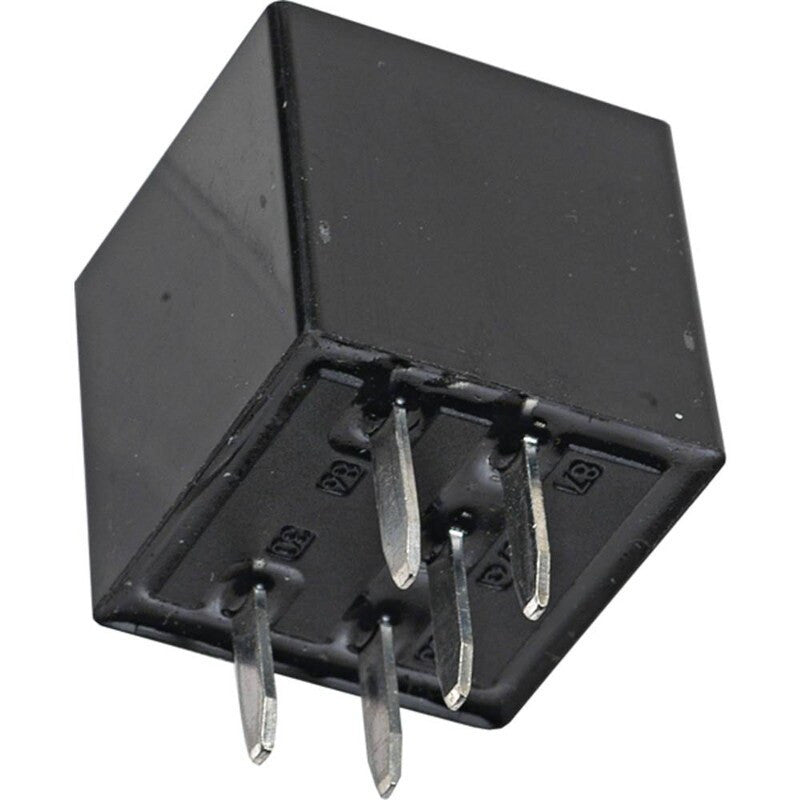

Mini Relay 12V 50A SPST 5 Terminals ISO 280 Sealed Base Change Over Contacts

Mini Relay 12V 50A SPST 5 Terminals ISO 280 Sealed Base Change Over Contacts

* Made to OEM Specs To Provide A Direct Fitment & Easy Install!
* Manufactured With High Grade Materials By an Industry Leader
* Ships Same Day If Ordered & Paid By 11AM EST

OEM Cross References:
References

* Arrowhead 240-01084

Specifications:

* Volt 12
* Amps 50
* Terminal ID 2 87
* Terminal 2 Size 2.8mm x 0.8mm
* Terminal ID 3 87a
* Terminal 3 Size 2.8mm x 0.8mm
* Terminal ID 4 85
* Terminal 4 Size 2.8mm x 0.8mm
* Terminal ID 5 86
* Terminal 5 Size 2.8mm x 0.8mm
* Terminal ID 6 30
* Terminal 6 Size 2.8mm x 0.8mm
* Cap Composition Plastic
* Contact Config Single Pole, Single Throw (SPST)
* Includes Change Over Contacts
* No of Terminals 5
* Plated Terminals FALSE
* Resistance Type Coil Only
* ISO 280 Footprint @ Sealed Base with Tinned Terminals
