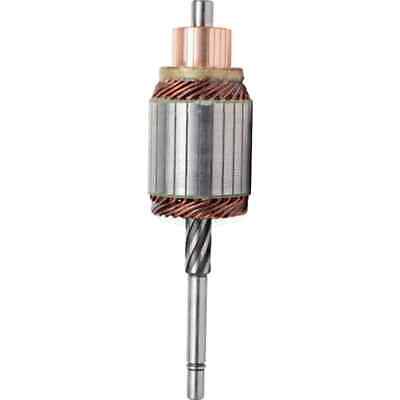

New 12V CW Armature for Prestolite, Arrowhead SPL3016, Lester 1877

New 12V CW Armature for Prestolite, Arrowhead SPL3016, Lester 1877

* Made to OEM Specs To Provide A Direct Fitment & Easy Install!
* Manufactured With High Grade Materials By an Industry Leader
* Ships Same Day If Ordered & Paid By 11AM EST

OEM Cross References:

* Arrowhead: SPL3016
* J&N Electrical Products: 300-20024, 300-20024R
* Lester: 1877
* Prestolite: 16-74, 16-805, MDL2084, MDL2084B

Specifications:

* Lester: 1877
* Volt: 12
* Condition: New
* Rotation Direction: Clockwise
* Body OD: 2.925"
* Body OD: 74.300mm
* CE OD: 0.638"
* CE OD: 16.200mm
* DE OD: 0.500"
* DE OD: 12.700mm
* Length: 11.256"
* Length: 285.900 mm
* CE to Stop: 15.900
* DE to Stop: 132.300
* Lam Stack Thickness: 2.583"
* Lam Stack Thickness: 65.600mm
* Number of Splines: 6
* Splines Type: Spiral
