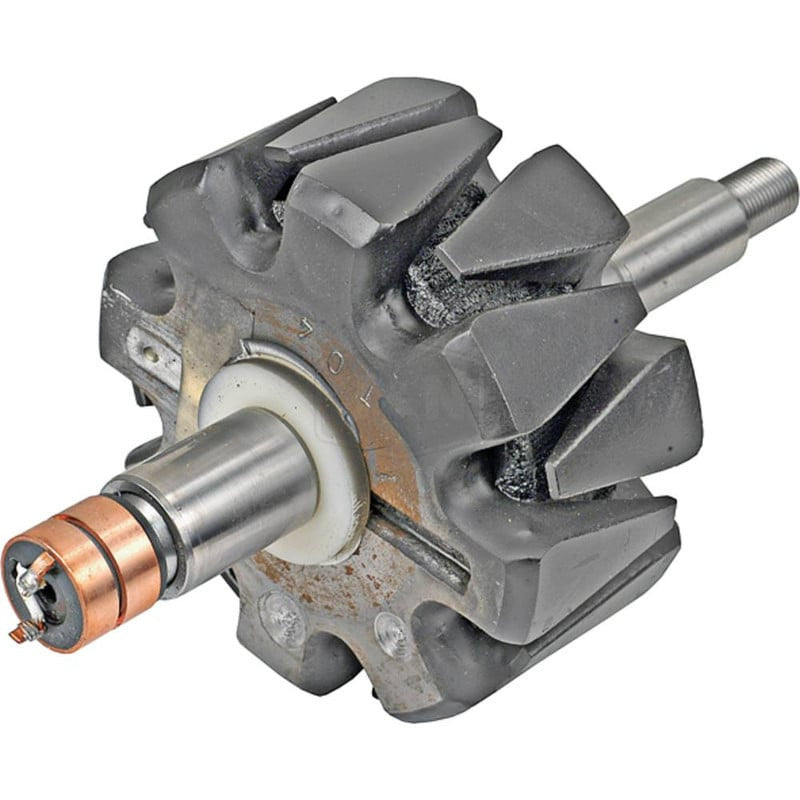

New 24V Rotor Assembly 175A High Amps, 125A Low Amps, 9.075" Length

New 24V Rotor Assembly
175A High Amps, 125A Low Amps, 9.075" Length

* Made to OEM Specs to Provide a Direct Fitment & Easy Install!
* Manufactured with High Grade Materials by an Industry Leader
* Ships Same Day if Ordered & Paid by 11AM EST

OEM Cross References:
References

* Arrowhead: AMO3005, PL112-49
* J&N Electrical Products: 303-16013
* Leece Neville: 112-49, 5944676C13
* Lester: 1157
* Motorola: 12-49
* Prestolite: 112-49

Specifications:

* Lester: 1157
* Volt: 24
* High Amps: 175
* Low Amps: 125
* Condition: New
* Body OD: 125.700 mm
* Body OD: 4.949"
* Shaft Bearing OD: 0.984"
* Shaft Bearing OD: 25 mm
* Shaft SRE OD: 1.063"
* Shaft SRE OD: 27 mm
* Slip Ring ID: 0.500"
* Slip Ring ID: 12.700 mm
* Slip Ring OD: 0.980"
* Slip Ring OD: 24.900 mm
* Length: 230.500 mm
* Length: 9.075"
* Poles Thickness: 2.350"
* Poles Thickness: 59.700 mm
* Shaft Pulley OD: 0.874"
* Shaft Pulley OD: 22.200 mm
* Shaft: 5/8-18
