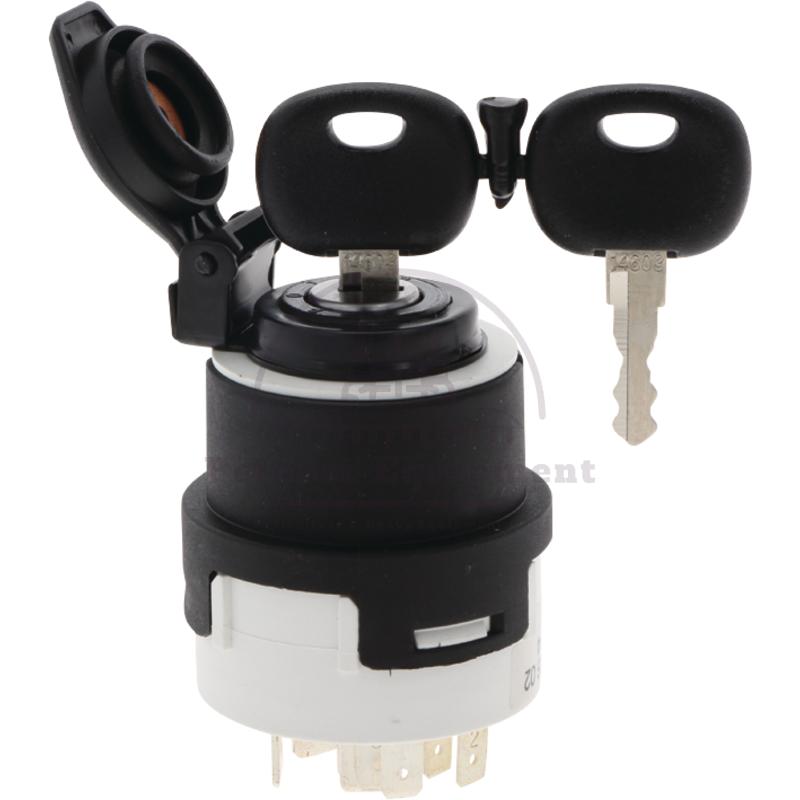

Start Switch 205 006 02, 12/24V, 9 Terminals, 2 Keys, Preheat, Interlock
Start Switch 205 006 02, 12/24V, 9 Terminals, 2 Keys, Preheat, Interlock
Regular price
$81.02 USD
Regular price
Sale price
$81.02 USD
Unit price
/
per
Couldn't load pickup availability
Start Switch 205 006 02, 12/24V, 9 Terminals, 2 Keys, Preheat, Interlock
Specifications: With 2 keys
Operating voltage: 12 V/24 V
Connection: 9 blade terminals (6.3 x 0.8 mm & 9.5 x 1.2 mm)
Locking cylinder with hinged cover
2 keys (type A 14603)
Max. voltage drop: 250 mV
Number of switching operations: approx. 50,000
Circuit diagram: 0, I, II, III
Start repeat interlock: yes
Preheating function: yes
Ambient temperature: +85°C to -40°C
- Made to OEM Specs to Provide a Direct Fitment & Easy Install!
- Manufactured with High Grade Materials by an Industry Leader
- Expedited International Shipping to the U.S.
Specifications: With 2 keys
Operating voltage: 12 V/24 V
Connection: 9 blade terminals (6.3 x 0.8 mm & 9.5 x 1.2 mm)
Locking cylinder with hinged cover
2 keys (type A 14603)
Max. voltage drop: 250 mV
Number of switching operations: approx. 50,000
Circuit diagram: 0, I, II, III
Start repeat interlock: yes
Preheating function: yes
Ambient temperature: +85°C to -40°C
